Sundance Spas MicroClean® Filter PN 6540-502

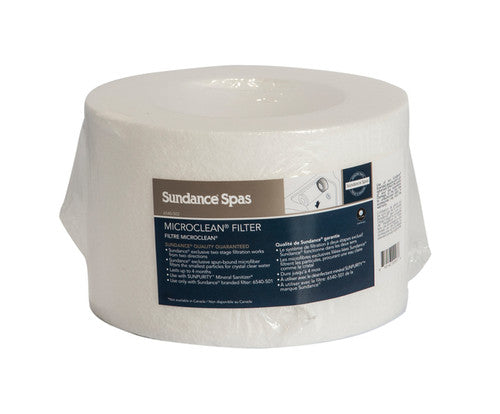

Sundance® Spas MicroClean® Filter – OEM Part #6540-502

Keep your Sundance® Spa water clean, clear, and properly filtered with the Sundance® Spas MicroClean® Filter #6540-502. This disposable depth-loading filter is an important part of the Sundance® MicroClean two-stage filtration system and is designed to capture extremely fine contaminants that may pass through a conventional pleated hot tub filter.

Unlike a traditional pleated filter that can be rinsed and reused, the 6540-502 MicroClean filter is designed to be disposable. Its specialized microfiber media traps fine particles and contaminants throughout the filter material, providing an additional level of filtration for cleaner, clearer spa water.

For best performance, replace the MicroClean filter approximately every 3–4 months.

✔️ Fits These Sundance® Spa Models (Quick Reference)

OEM Part Number:
6540-502

Filter Type:
MicroClean® Disposable / Depth-Loading Filter

Compatible Models & Years:

• Altamar: 2002–2005
• Bahia: 2006
• Cameo: 2002–2004
• Camden: 2007+
• Capri: 2002–2005
• Caprio ST: 2002–2006
• Cayman: 2006
• Certa: 2007+
• Chelsee: 2007+
• Constance: 2011+
• Dover: 2008+
• Hamilton: 2007+
• Marin: 2002–2005
• Maxxus: 2002–2004
• Metro: 2004–2007
• Optima: 2002–2004
• Tango: 2002–2003
• Victoria: 2011+

Cross-Reference / Replacement Numbers

This filter replaces or cross-references:

• Sundance® 6540-502
• PSD25-6
• FC-2812
• AK-6540502
• PP2002

Important Compatibility Information

The 6540-502 is the disposable MicroClean filter used as part of the Sundance® two-stage filtration system. It is commonly used in conjunction with the larger 6540-501 pleated filter on compatible systems.

Always verify your Sundance® Spa model and model year before ordering, as filter configurations can vary by year.

Key Features

• Sundance® MicroClean® Filter – Designed for compatible Sundance® Spa filtration systems
• Part #6540-502 – Easy OEM part-number identification
• Depth-Loading Filtration – Captures extremely fine particles and contaminants
• Two-Stage Filtration – Works with the primary pleated filter in compatible MicroClean systems
• Disposable Filter Media – No cleaning or soaking required
• Helps Maintain Clear Spa Water – Provides an additional level of fine-particle filtration
• Recommended Replacement Every 3–4 Months

What Makes the Sundance® MicroClean® Filter Different?

A conventional pleated hot tub filter primarily captures debris on the surface of its filter media and can typically be rinsed and reused.

The Sundance® MicroClean® 6540-502 filter works differently.

Its specialized depth-loading microfiber media captures much finer contaminants throughout the filter material. This allows the MicroClean system to provide an additional stage of filtration beyond what the primary pleated filter can accomplish by itself.

The two filters work together: the larger pleated cartridge handles larger debris and can be periodically cleaned, while the MicroClean filter captures much finer contaminants and is replaced rather than cleaned.

⚠️ Do Not Clean the 6540-502 MicroClean® Filter

The Sundance® 6540-502 MicroClean filter is disposable and should not be cleaned or reused.

Do not:

• Spray it with a garden hose
• Pressure wash it
• Soak it in filter cleaner
• Attempt to scrub or rinse the filter media

Cleaning can damage the specialized filter material and reduce its effectiveness.

Instead, simply remove and replace the MicroClean filter approximately every 3–4 months.

Filter Specifications

Part Number: 6540-502
Filter Type: MicroClean® disposable depth-loading filter
Approximate Diameter: 7-1/2” to 7-3/4”
Approximate Height: 5”
Replacement Interval: Approximately every 3–4 months
Cleanable: No
Reusable: No

💡 MicroClean® Maintenance Tip

An easy way to maintain your Sundance® MicroClean filtration system is to put the disposable filter on a regular replacement schedule.

While the larger pleated filter should be removed and cleaned periodically, the 6540-502 MicroClean filter should simply be replaced.

Don’t rely only on its appearance to determine when replacement is necessary. Because fine contaminants are captured throughout the depth of the filter media, the cartridge can become loaded even when the outside doesn’t look excessively dirty.

❓ Frequently Asked Questions (Q&A)

Q: Is the Sundance® 6540-502 filter washable?
A: No. The 6540-502 MicroClean® filter is a disposable depth-loading filter and should not be rinsed, sprayed, soaked, or cleaned.

Q: How often should I replace the Sundance® 6540-502 filter?
A: The MicroClean filter should generally be replaced approximately every 3–4 months, depending on spa use and water conditions.

Q: What is the difference between the Sundance® 6540-501 and 6540-502 filters?
A: On compatible MicroClean systems, 6540-501 is the larger pleated filter that can be cleaned and reused, while 6540-502 is the smaller disposable MicroClean depth-loading filter. The two filters work together as part of the filtration system.

Q: Can I use filter cleaner on the 6540-502 MicroClean filter?
A: No. Filter cleaner should not be used on the 6540-502. The filter media is designed to be replaced rather than cleaned.

Q: What filters cross-reference with Sundance® part #6540-502?
A: Common cross-reference numbers include PSD25-6, FC-2812, AK-6540502, and PP2002.

Q: Does the 6540-502 replace my main pleated hot tub filter?
A: No. In compatible two-stage MicroClean systems, the 6540-502 works alongside the larger primary pleated filter to provide additional fine-particle filtration.

Q: Why shouldn’t I rinse the MicroClean filter?
A: Unlike conventional pleated filters, the MicroClean cartridge uses specialized depth-loading media that captures contaminants throughout the material. Attempting to rinse or clean it can damage the media and reduce filtration performance.

Q: How do I know if 6540-502 is the correct filter for my Sundance® Spa?
A: Compare your existing filter part number and verify your Sundance® model and model year against the compatibility list above. Filter configurations can vary between model years
